Boxing Bag Brackets, Stands & Mounting Solutions Features
-

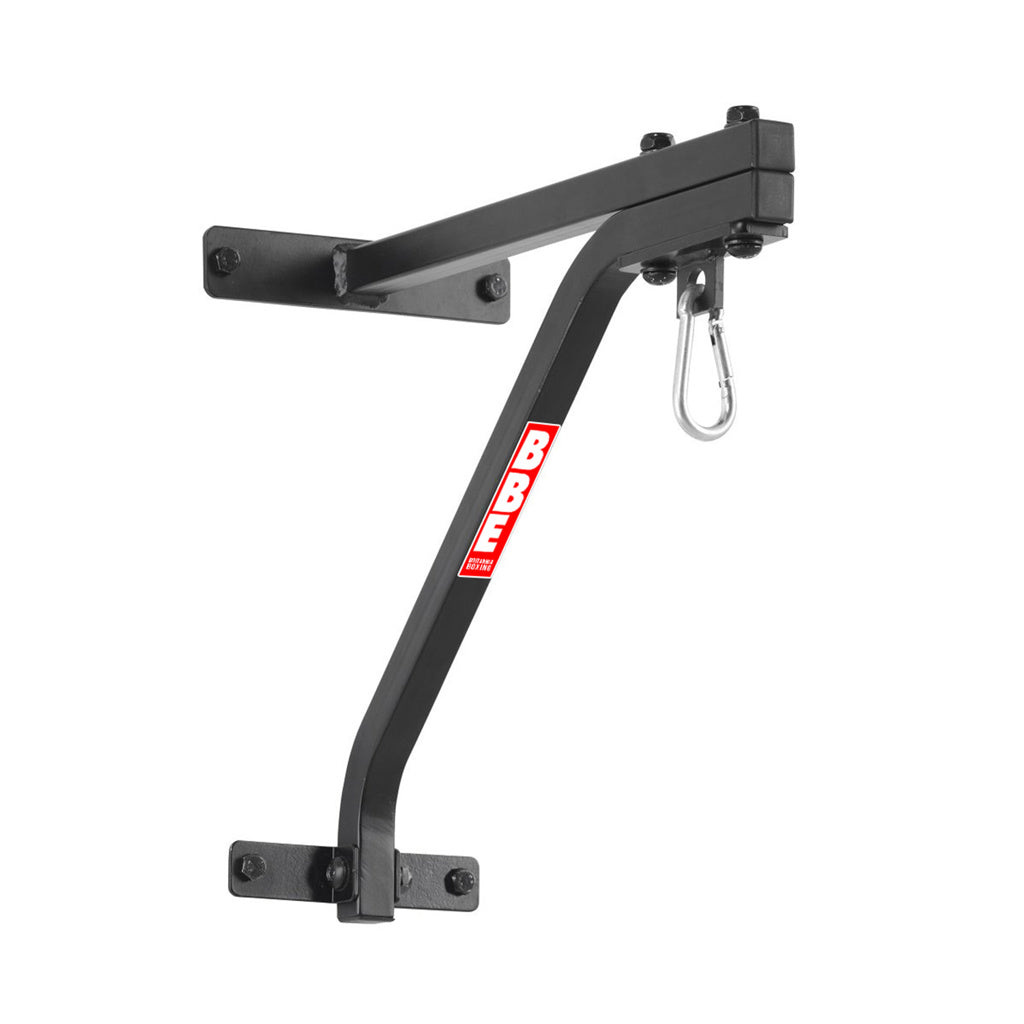

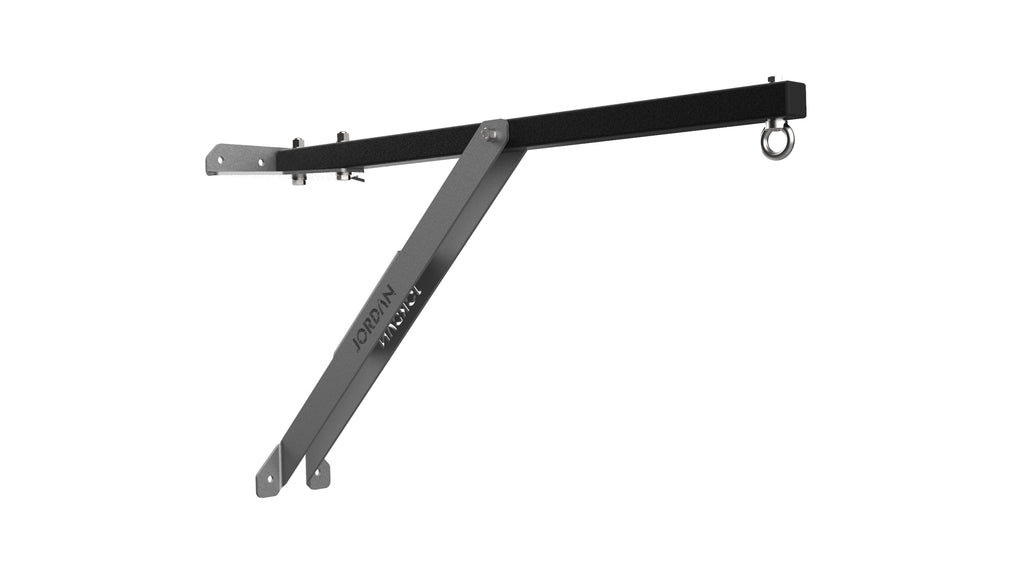

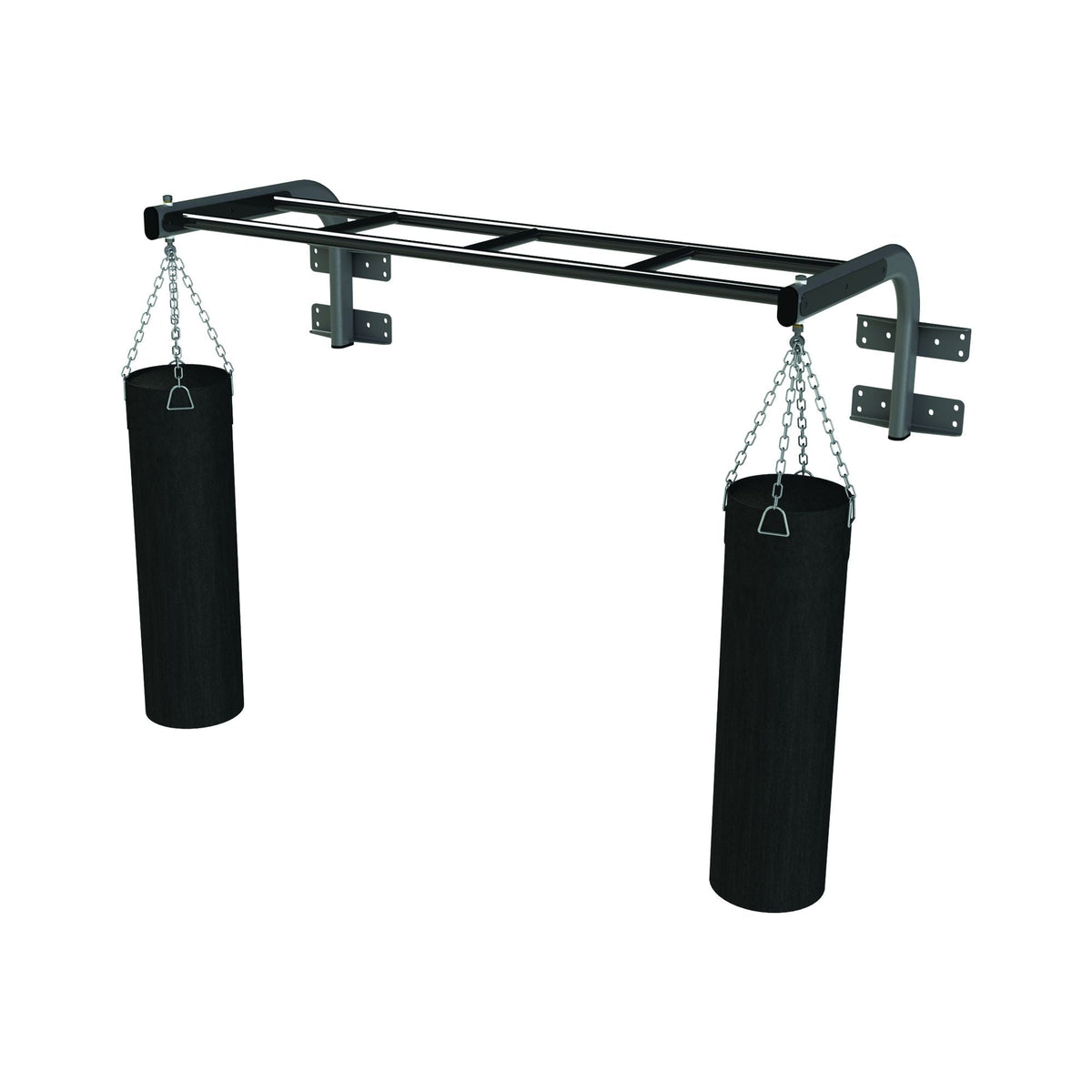

Wall-Mounted Brackets
Folding designs (18", 24", 30" reach) collapse flat when not in use for space-saving storage. Fixed brackets provide maximum stability for permanent installations. Four to six fixing points with hex head bolts ensure secure wall attachment. Tripod stabilizing arms eliminate lateral movement during strikes. Maximum load capacities from 20kg to 45kg depending on model. Black powder-coated finishes resist scratches and corrosion. All fixtures, fittings, and assembly instructions included.
-

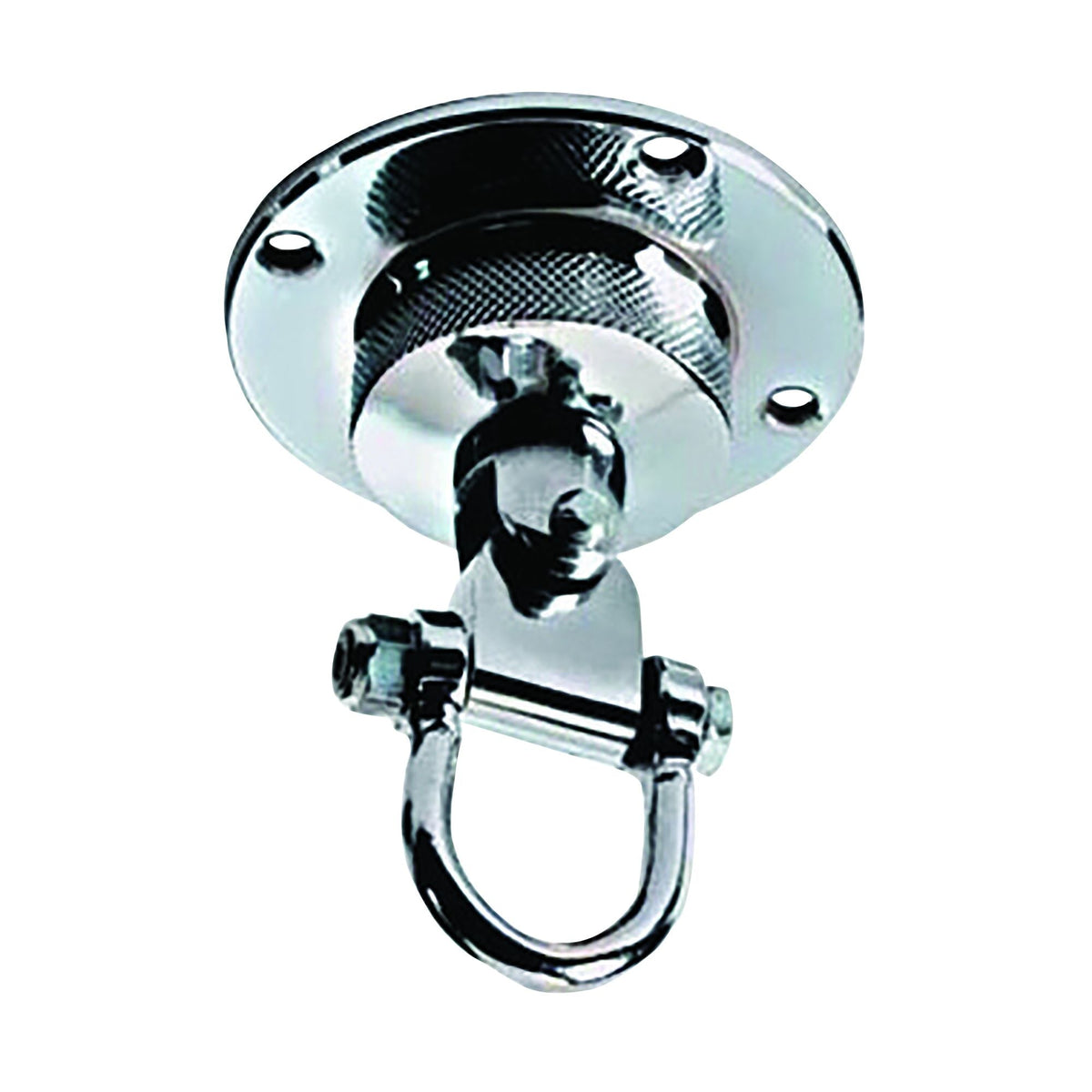

Ceiling Hooks & Swivels
Rotating bearing swivels enable 360° rotation preventing chain twisting. Heavy-duty stainless steel construction rated for 6-ton loads (commercial-grade). Screw pins on hooks create solid connections between bag straps and ceiling mounts. Chrome-plated and stainless steel finishes. Quick-release pin actions for easy bag attachment/removal. Suitable for bags up to 100kg+ when properly installed in structural supports.
-

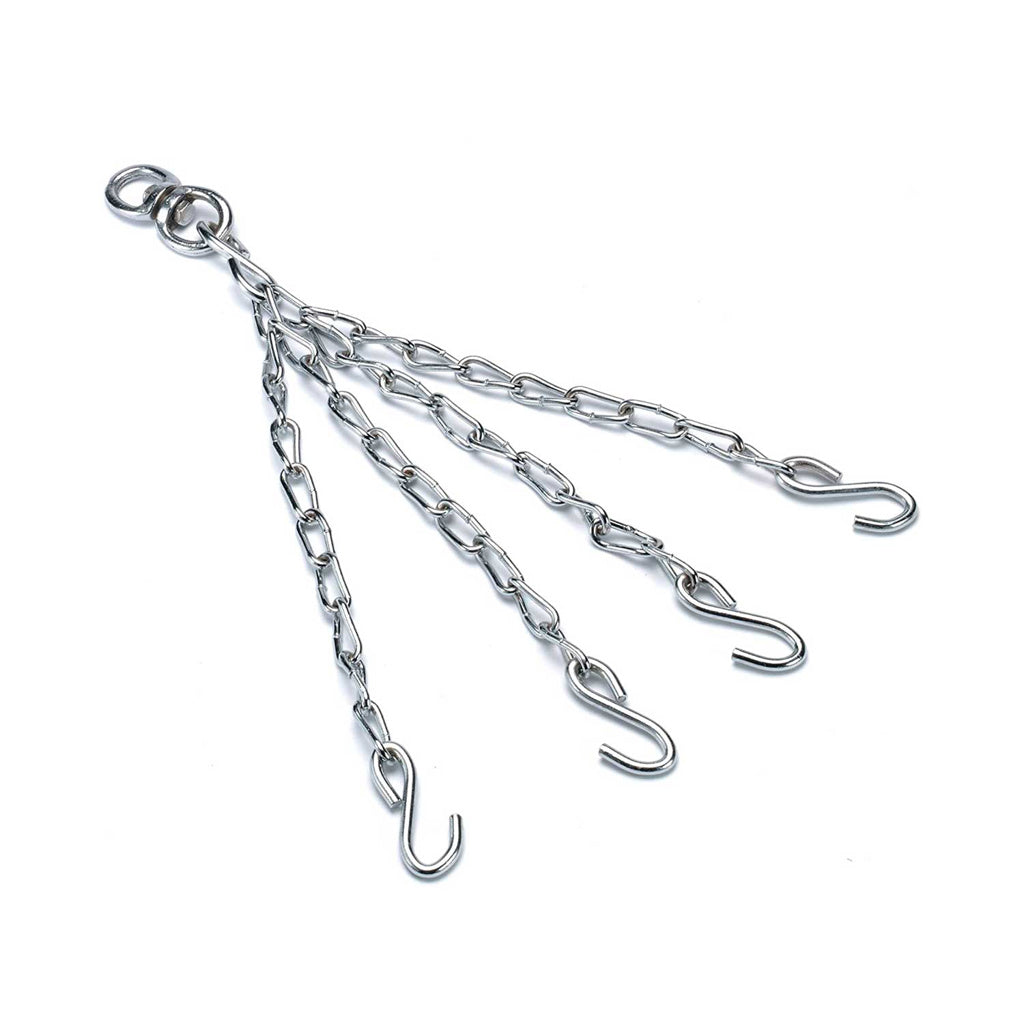

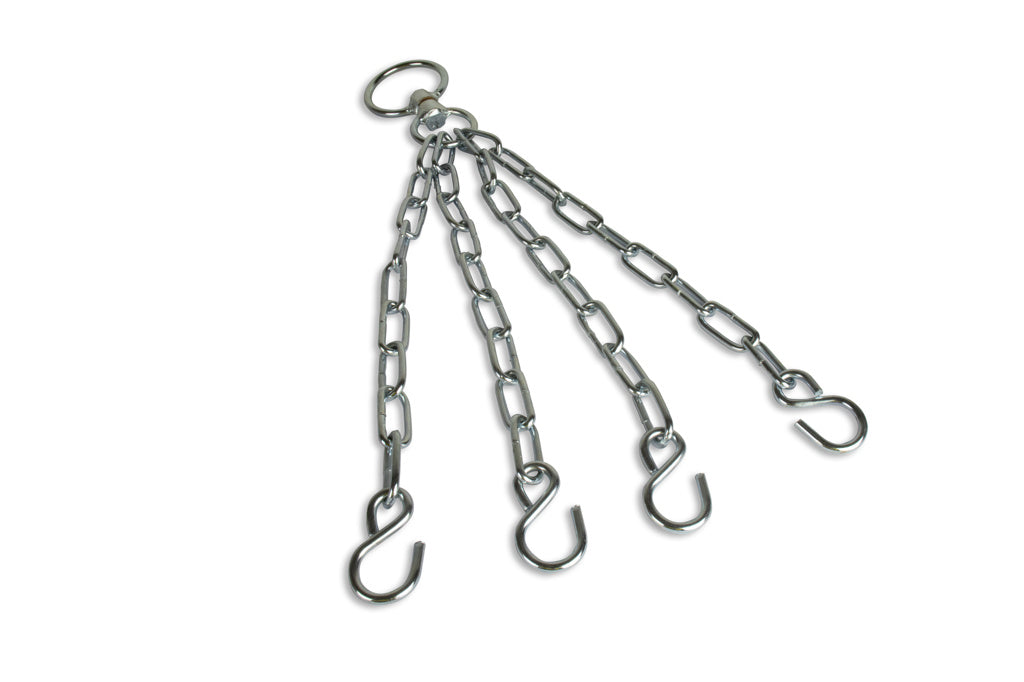

Chain Sets
Four-strand chrome-plated chains with durable S-hook ends. 360° rotation swivels for smooth bag movement. 43cm total length (32cm chain length). Secure punch bags in desired positions. Compatible with all standard heavy bags featuring D-ring hangers. 1kg weight typical. Essential connection between ceiling mount and punch bag.
-
Speed Ball Platforms & Frames
Wall-mounted platforms with dual bearing swivels ensure stable rebound. Adjustable models feature 10-position height systems with numeric indicators (225mm adjustment range). Fixed platforms provide permanent installation. 30mm thick birch plywood boards with white covering. Five fixing points for secure wall attachment. Fold-flat frames save space when not in use. Five height settings accommodate different user heights. Rotational bearing swivels included. All hardware and assembly instructions provided.
-
Retractable Brackets
Revolutionary rail systems push punch bags flat to wall freeing crucial floor space. 1m distance to bag center allows working around bag. Laser-cut 60×60×3mm material with 6mm support plates. 316-grade stainless steel swivels rated to 500kg. Six fixing points ensure structural integrity. Maximum load 40kg. Lifetime main frame commercial warranties. UK-manufactured quality.
-
Karabiner Clips & Accessories
Mild steel construction with quick-release mechanisms. 8cm length typical. 8mm clips rated for 300kg maximum load. 10mm clips rated for 400kg maximum load. Suitable for punch bags, floor-to-ceiling bags, speed balls, and cable attachment systems. Quick and easy bag attachment/removal.
-

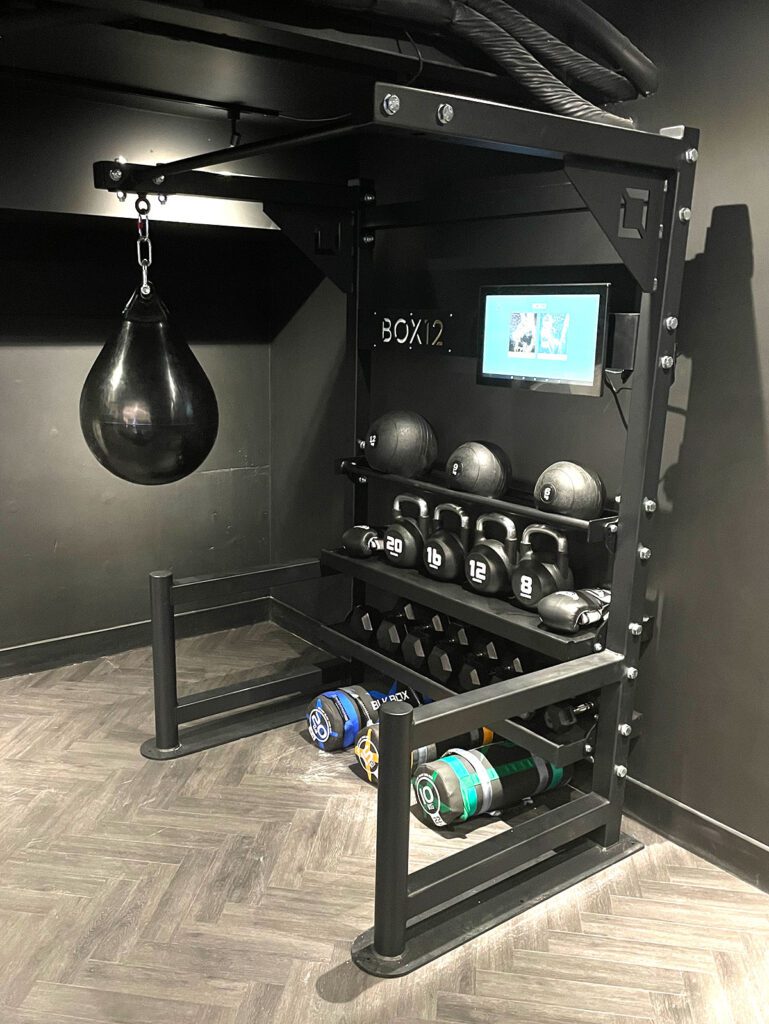

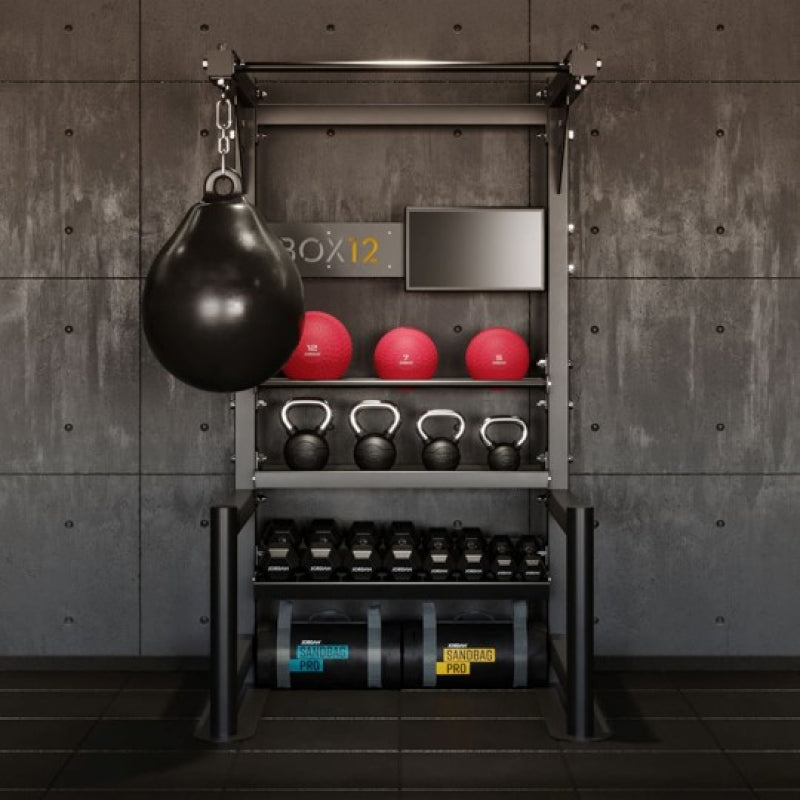

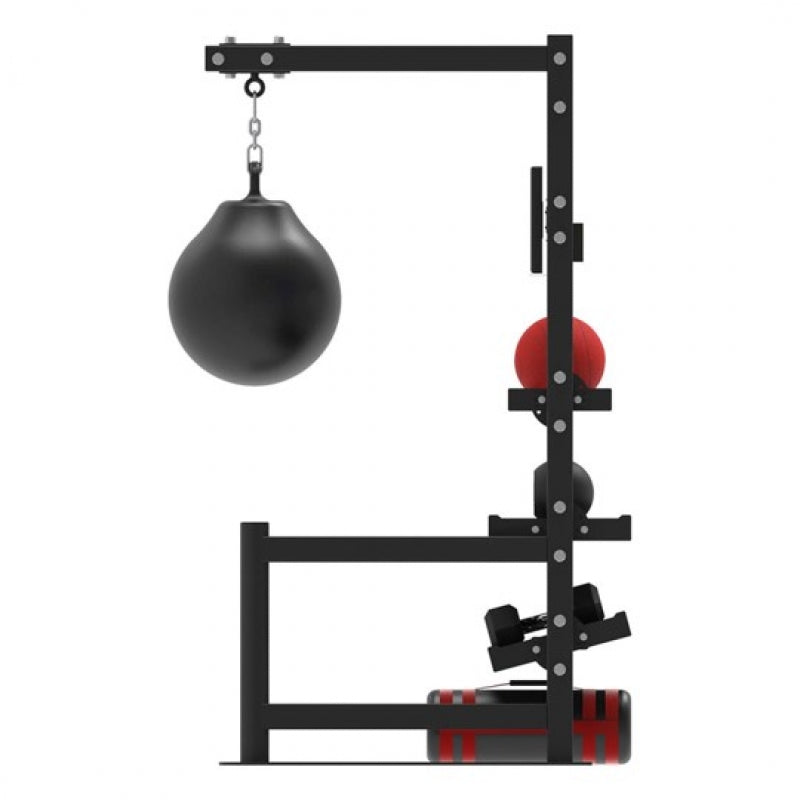

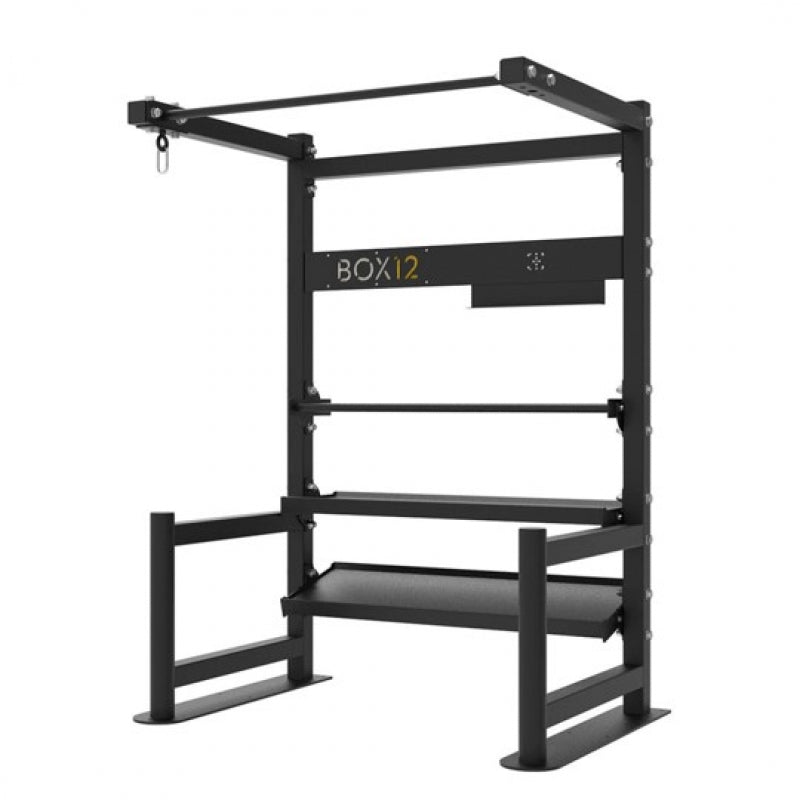

Complete Boxing Pods
Freestanding integrated systems combining boxing rig, aqua bag, and functional fitness storage. 22" interactive touchscreens with preloaded workouts. Three integrated shelves for balls, kettlebells, dumbbells. 80×80mm laser-cut mild steel uprights. M20 high-tensile bolt design reduces movement. Skid plates for additional stability. Space-saving footprint: 2250mm height × 1313mm depth × 1660mm width. Customizable branding plates. Complete turnkey solutions for commercial facilities.
Benefits of Boxing Bag Brackets, Stands & Mounting Solutions
-
For Space Efficiency (Folding Brackets)
Folding wall brackets collapse flat when not in use, reclaiming valuable floor and wall space. Ideal for multi-purpose training areas, home gyms, and facilities requiring flexible space utilization. Simple bolt removal enables quick folding—no tools required for daily operation. Minimal wall protrusion when folded (typically 7-10cm).
-
For Structural Integrity & Safety
Multiple fixing points (4-6 typical) distribute load across wall structure preventing failure. Tripod stabilizing arms eliminate dangerous lateral movement during strikes. Heavy-duty materials (laser-cut steel, stainless steel swivels) withstand intensive commercial use. Proper installation in brick walls ensures decades of safe operation. Professional-grade components prevent equipment failure and injury.
-
For Versatility (Adjustable Systems)
Adjustable speed ball platforms accommodate users of all heights through 5-10 position systems. Retractable brackets enable both intensive training and space-saving storage. Swivel systems allow bags to rotate freely, enabling footwork training and 360° striking. Universal compatibility with standard punch bags through D-ring and chain connections.
-
For Commercial Durability
Powder-coated finishes resist scratches, chips, and corrosion through years of daily use. Stainless steel swivels rated for 6-ton loads handle heaviest bags and most powerful strikes. Lifetime main frame warranties on premium brackets demonstrate manufacturer confidence. UK-manufactured products ensure quality control and local support.
-
For Easy Installation & Maintenance
Complete hardware kits include all necessary bolts, washers, and fixings. Detailed assembly instructions guide proper installation. Hex head bolts enable ring spanner tightening for maximum torque. Replaceable swivels extend bracket lifespan without complete replacement. Minimal maintenance required—periodic inspection and bolt tightening sufficient.
-
For Training Effectiveness
Proper mounting enables full range of motion around bags. Adequate wall clearance (18-30" reach) prevents bag-wall contact during swinging. Stable platforms ensure consistent speed ball rebound for rhythm training. 360° swivels allow natural bag rotation during footwork drills. Secure mounting builds confidence for maximum-power strikes.
-
For Cost Efficiency
Wall and ceiling mounting eliminates need for expensive freestanding bags. Folding brackets serve multiple bags—swap bags for varied training without multiple mounting points. Replaceable components (swivels, chains) extend system lifespan. Lifetime warranties on premium brackets eliminate replacement costs. DIY installation possible for handy individuals, saving professional installation fees.
Buying Tips - Boxing Bag Brackets, Stands & Mounting Solutions
1) Choosing Wall Bracket Type
-

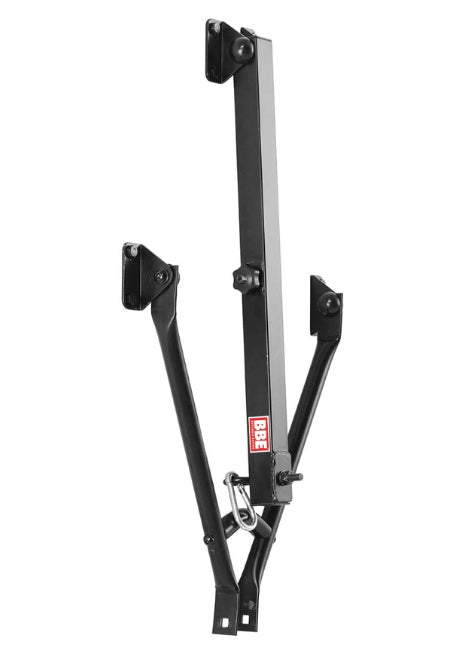

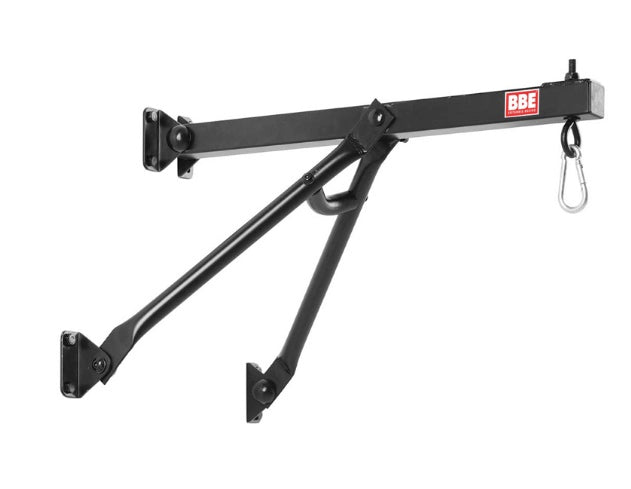

Folding Wall Brackets
Best for: Multi-purpose spaces, home gyms, facilities requiring flexible space use.
Reach options: 18" (46cm), 24" (61cm), 30" (76cm) from wall to bag center.
Load capacities: 20kg (18"), 30kg (24"), 35-45kg (30").
Pros: Space-saving when folded, versatile, adequate for most home use, simple bolt removal for folding.
Cons: Slightly less stable than fixed brackets, folding mechanism adds complexity, not ideal for heaviest bags (60kg+).
Ideal for: Home practitioners, boutique studios, multi-purpose training areas.
-

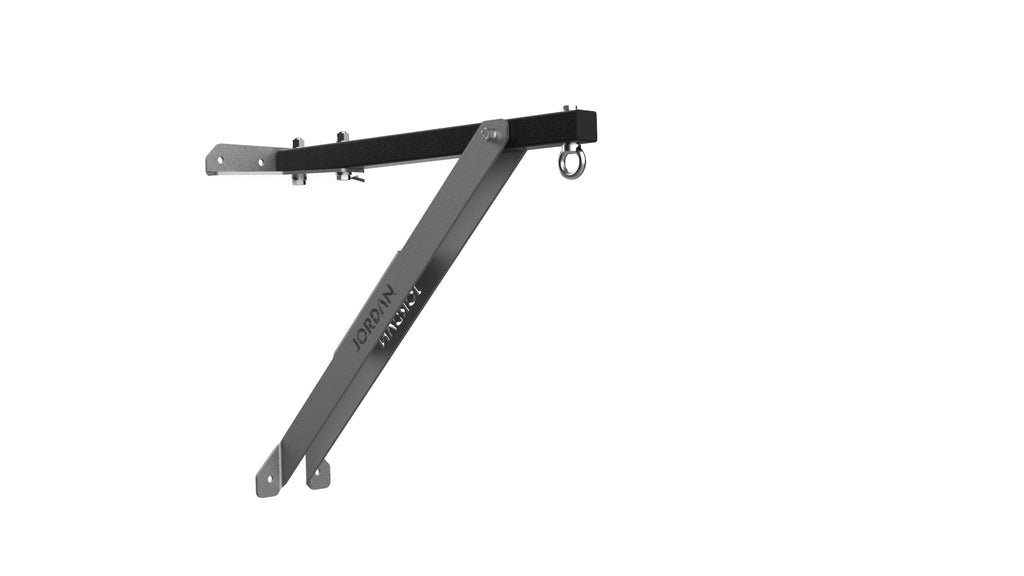

Fixed Wall Brackets
Best for: Permanent installations, dedicated boxing spaces, commercial gyms.
Reach options: 18-30" typical, custom lengths available.
Load capacities: Up to 45kg+ depending on construction.
Pros: Maximum stability, simpler construction (fewer failure points), suitable for heaviest bags, professional appearance.
Cons: Permanent wall protrusion, no space-saving capability, requires dedicated wall space.
Ideal for: Commercial boxing studios, dedicated home boxing rooms, permanent installations.
-
Retractable Rail Brackets
Best for: Premium installations requiring both performance and space efficiency.
Reach: 1m to bag center when extended.
Load capacity: 40kg maximum.
Pros: Push flat to wall when not in use, allows working around bag, premium construction, lifetime warranties.
Cons: Higher cost , more complex installation, requires solid wall structure.
Ideal for: High-end home gyms, boutique studios, facilities prioritizing aesthetics and functionality.
2) Understanding Load Capacities
-

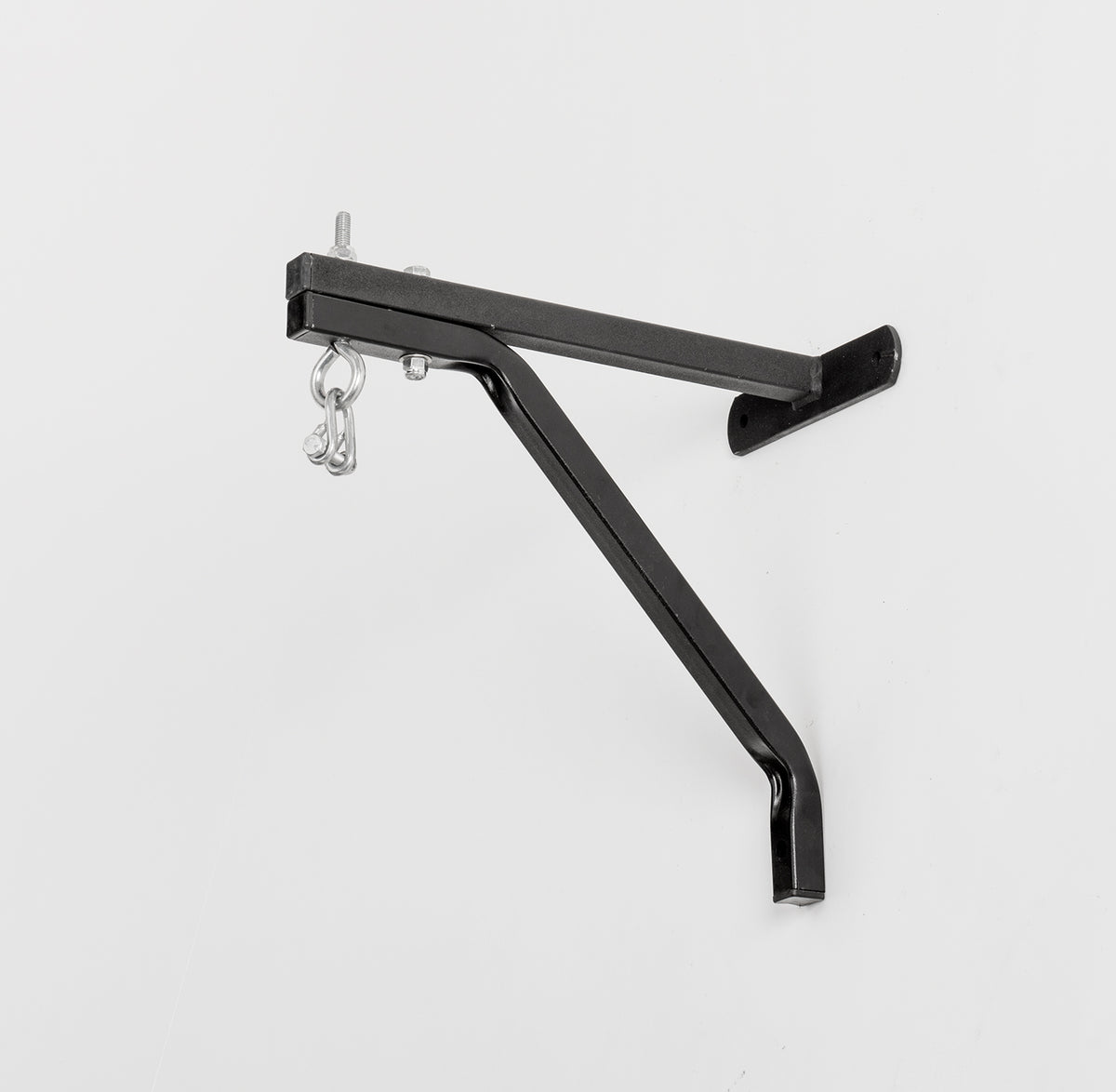

Light-Duty Brackets (20kg Maximum)
Suitable for: 3ft bags (20-25kg), speed bags, children's bags, light training.
Construction: Four fixing points, basic stabilizing arms.
Best for: Beginners, home use, light bags only.
Warning: Do not exceed weight limit—bracket failure risk.
-
Medium-Duty Brackets (30-35kg Maximum)
Suitable for: 4ft bags (30-35kg), most home training, intermediate use.
Construction: Four to six fixing points, tripod stabilizing arms.
Best for: General home use, light commercial, most standard bags.
Most popular: Balances capacity with affordability.
-
Heavy-Duty Brackets (40-45kg Maximum)
Suitable for: 4-5ft bags (40-55kg), commercial use, power training.
Construction: Six fixing points, reinforced stabilizing arms, commercial-grade materials.
Best for: Commercial studios, serious boxers, heavy bags, intensive training.
Professional grade: Designed for daily high-volume use.
3) Ceiling Mounting Systems
-

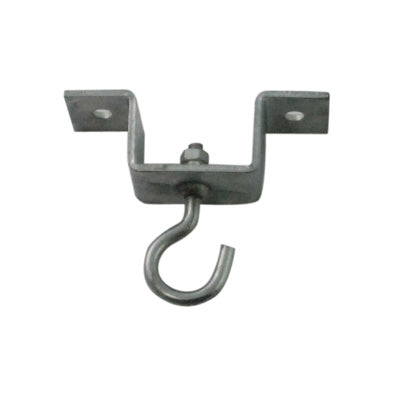

Standard Ceiling Hooks
Features: Rotating bearing swivels, chrome or stainless steel construction.
Installation: Single-point ceiling mounting into joist or concrete.
Load capacity: Varies by model—verify rating before purchase.
Pros: Simple installation, affordable, adequate for most bags.
Cons: Single failure point, requires structural ceiling support.
Best for: Home gyms with accessible ceiling joists, bags up to 50kg.
-
Heavy-Duty Swivels (6-Ton Rated)
Features: Stainless steel construction, screw pin hooks, commercial-grade bearings.
Load capacity: 6000kg rating (massive safety margin for any punch bag).
Pros: Virtually indestructible, suitable for heaviest bags, commercial-grade, replaceable without replacing chains.
Cons: Higher cost (£30-60), overkill for light bags.
Best for: Commercial studios, heavy bags (50kg+), high-volume use, maximum safety margin.
-
Chain Sets
Four-strand: Standard for bags up to 40kg, adequate for most home use.
Six-strand: Recommended for bags 40kg+, commercial use, maximum durability.
Length: 32-43cm typical—verify compatibility with ceiling height and bag length.
Swivels: Integrated 360° rotation swivels prevent chain twisting and enable bag rotation.
- Speed Ball Mounting
-

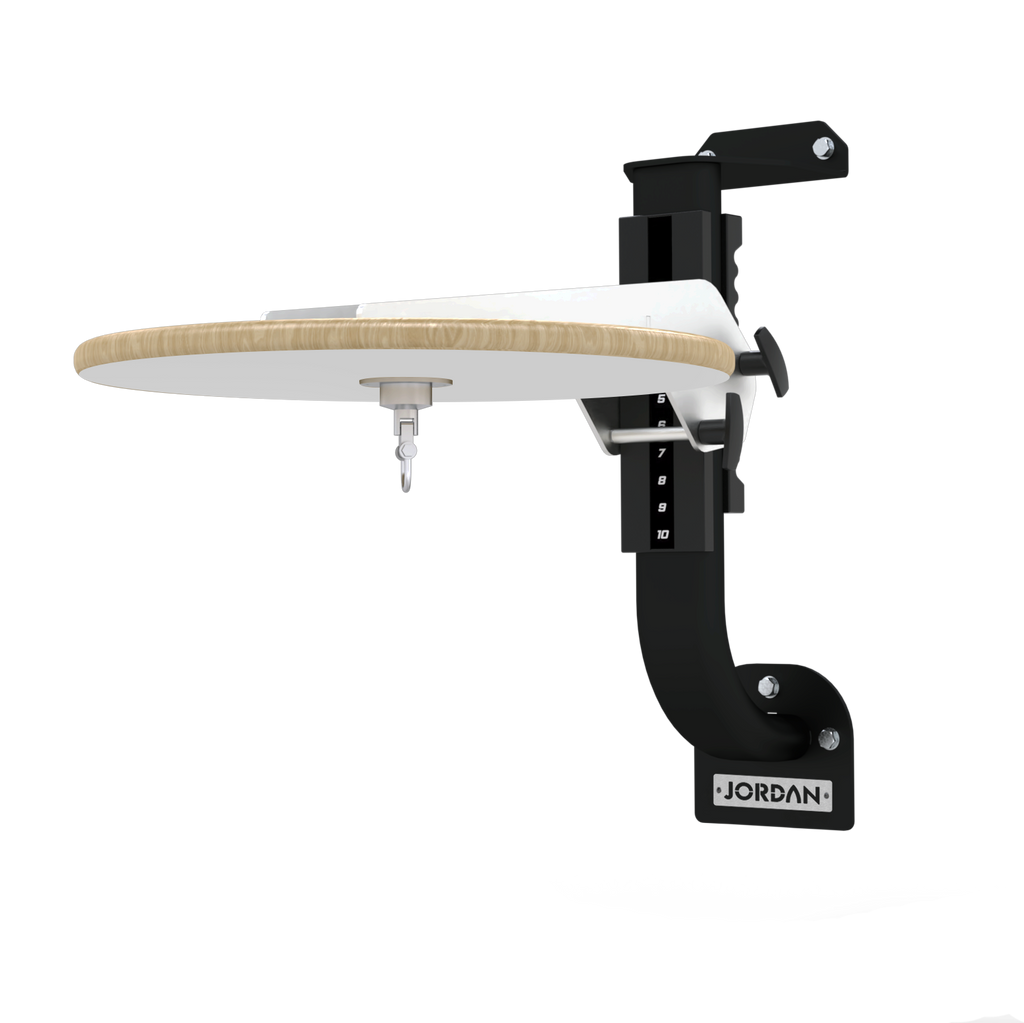

Adjustable Platforms
Features: 10-position height adjustment (225mm range), numeric indicators, dual bearing swivels.
Construction: 100×50×3mm oval steel, 6mm support plates, 30mm birch plywood boards.
Pros: Accommodates all user heights, quick adjustments, stable rebound, lifetime warranties.
Cons: Higher cost (£150-300), more complex installation.
Best for: Commercial studios, families with varied heights, serious speed ball training.
-

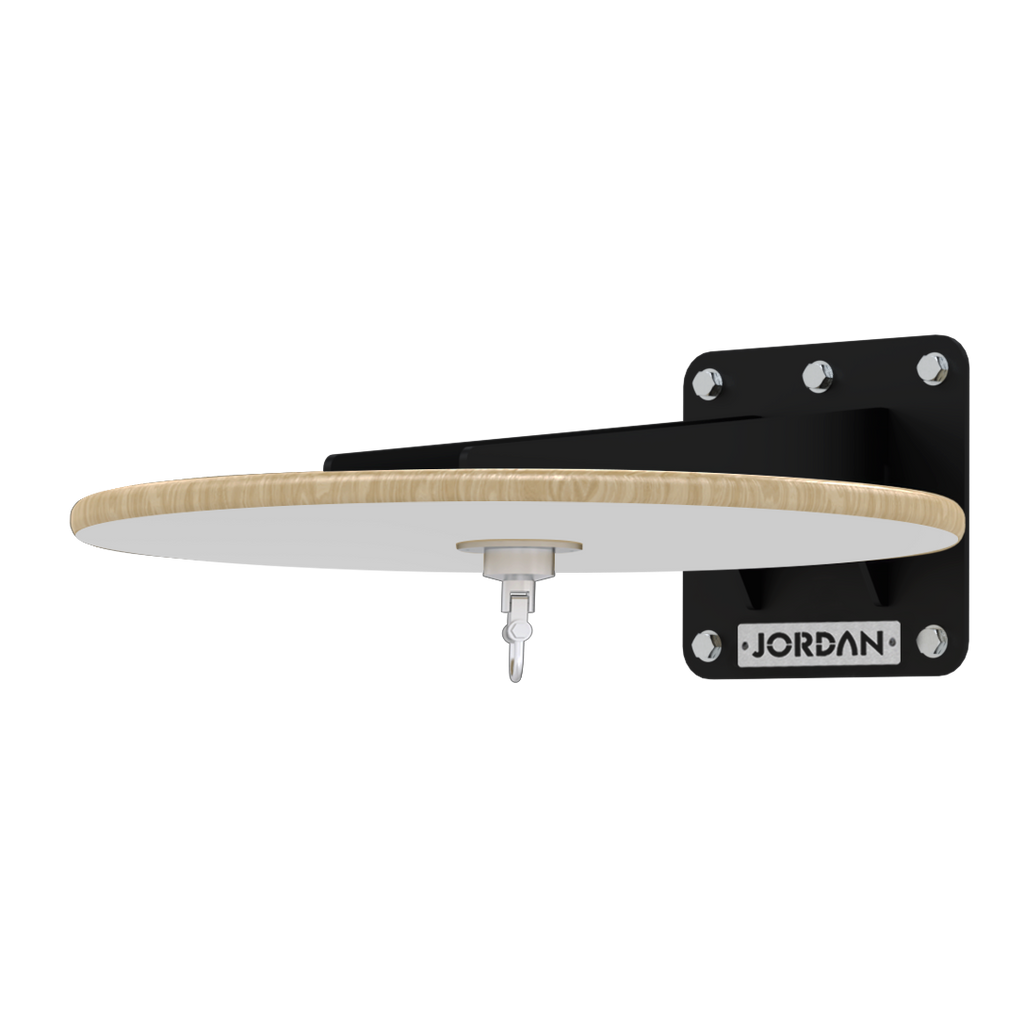

Fixed Platforms
Features: Single height, dual bearing swivels, 30mm birch plywood boards.
Construction: 6mm laser-cut steel, five fixing points.
Pros: Lower cost (£80-150), simpler installation, adequate for single-user height.
Cons: No height adjustment—must choose correct height at installation.
Best for: Home gyms, single-user applications, budget-conscious buyers.
-
Fold-Flat Frames
Features: Wall-mounted frames with rotational bearing swivels, five height settings.
Dimensions: 60cm × 60cm × 77.5cm typical.
Pros: Space-saving when folded, adjustable height, includes all hardware.
Cons: Less stable than platforms, requires wall mounting.
Best for: Home gyms with limited space, multi-purpose areas.
4) Wall Structure Requirements
-
Suitable Walls
Solid brick: Ideal—provides maximum strength and durability. Recommended for all brackets.
Concrete: Excellent—use appropriate concrete anchors and bolts.
Solid block: Adequate for light to medium brackets (up to 35kg bags).
Timber frame with solid backing: Possible for light brackets—consult structural engineer.
-
Unsuitable Walls
Plasterboard/drywall: Insufficient strength—will fail under repetitive impact forces.
Breeze block: Too weak—may initially hold but will deteriorate under use.
Hollow walls: Cannot support dynamic loads from striking.
Warning: Installing on unsuitable walls risks bracket failure, wall damage, and serious injury.
-
Installation Requirements
Fixing points: Minimum 4 for light brackets, 6 for heavy-duty commercial brackets.
Bolt type: Hex head bolts enable ring spanner tightening for maximum torque.
Wall penetration: 75-100mm minimum into solid brick or concrete.
Spacing: Distribute fixing points across wall area to spread load.
Professional installation: Recommended for commercial facilities, heavy bags (40kg+), or uncertain wall structures.
5) Clearance & Positioning
-
Wall Clearance
18" brackets: Bag may contact wall during heavy swinging—suitable for lighter bags or controlled training.
24" brackets: Adequate clearance for most bags and training styles.
30" brackets: Maximum clearance—enables full footwork around bag without wall contact.
Retractable (1m): Premium clearance for unrestricted movement.
-
Height Positioning
Standard: Mount so bag bottom is 30-45cm from floor when hanging.
Speed balls: Platform height should position ball at user's nose/forehead level.
Adjustable systems: Install at mid-range to enable adjustment up or down.
Ceiling height: Minimum 2.4m for standard bags, 2.7m+ for Thai bags.
6)Maintenance & Safety
-
Regular Inspection
Monthly (home use): Check all bolts for tightness, inspect swivels for wear, verify wall integrity around fixing points.
Weekly (commercial use): Inspect swivels and chains for wear, check wall mounting security, tighten any loose bolts.
Immediately: Investigate any unusual sounds, movement, or visible damage.
Replace: Swivels showing wear, stretched chains, damaged bolts—never wait for failure.
-
Swivel Replacement
Frequency: Every 6-12 months in high-volume commercial settings, every 2-3 years home use.
Signs of wear: Rough rotation, visible wear on bearing surfaces, cracks or deformation.
Advantage: Replaceable swivels extend bracket lifespan without complete replacement.
-
Wall Integrity
Check for: Cracks around fixing points, loose bolts, wall material deterioration.
Brick walls: Inspect mortar joints for cracking or crumbling.
Concrete: Check for spalling or cracking around anchor points.
Action: Address any wall damage immediately—do not continue use until repaired.
Frequently Asked Questions Boxing Bag Brackets & Stands
Can I mount a punch bag bracket on any wall?
No, only solid brick or concrete walls are suitable. Plasterboard, drywall, breeze block, and hollow walls cannot support the dynamic forces from striking and will fail, causing damage and potential injury. Always verify wall construction before installation. When in doubt, consult a structural engineer or professional installer.
What size bracket do I need for my punch bag?
Match bracket load capacity to bag weight plus safety margin. 20kg bag = 30kg bracket minimum. 35kg bag = 40-45kg bracket. Choose reach based on desired clearance: 18" for controlled training, 24" for general use, 30" for full footwork. Heavier bags and more powerful strikes require longer reach to prevent wall contact.
Should I buy a folding or fixed bracket?
Folding brackets suit multi-purpose spaces where wall clearance matters when not training. Fixed brackets provide maximum stability for permanent installations and dedicated boxing spaces. Folding brackets adequate for bags up to 35-40kg; fixed brackets better for heavier bags (45kg+) and commercial use.
How do I install a wall bracket safely?
Use all provided fixing points (4-6 bolts), drill into solid brick or concrete (not mortar joints), penetrate 75-100mm minimum, use hex head bolts with ring spanner for maximum torque, distribute fixing points across wall area, verify wall integrity before and after installation. Professional installation recommended for commercial facilities or if uncertain about wall structure.
Do I need a swivel for my punch bag?
Yes, swivels are essential. They enable 360° bag rotation preventing chain twisting and binding. Without swivels, chains twist and eventually fail. Use standard swivels for bags up to 40kg, heavy-duty 6-ton rated swivels for heavier bags or commercial use. Inspect and replace swivels regularly—they're wear items requiring periodic replacement.
Can I use a ceiling hook in my home?
Only if you can mount into ceiling joists (wood frame construction) or solid concrete. Drywall alone cannot support punch bag loads. Locate joists with stud finder, use appropriate lag bolts or concrete anchors, verify ceiling can support 3-4× bag weight. Professional installation recommended if uncertain. Freestanding bags are safer alternative for homes without suitable ceiling structure.
How far should my bracket extend from the wall?
18" (46cm): Minimum clearance, bag may contact wall during heavy swinging. Suitable for lighter bags (20-30kg) or controlled training. 24" (61cm): Standard clearance for most bags and training styles. Prevents wall contact during normal use. 30" (76cm): Maximum clearance enables full footwork around bag. Recommended for heavy bags (40kg+) and power training. 1m (retractable): Premium clearance for unrestricted movement.
What's the difference between 4-strand and 6-strand chains?
4-strand chains adequate for bags up to 40kg and home use. 6-strand chains recommended for bags 40kg+ and commercial use—provide redundancy and longer lifespan. Both include 360° swivels. Choose based on bag weight and usage intensity. Commercial studios should use 6-strand for all bags to maximize durability.
How often should I replace swivels?
Home use: Every 2-3 years or at first sign of wear. Commercial use: Every 6-12 months depending on volume. Signs of wear: rough rotation, visible bearing damage, cracks, deformation. Never wait for failure—replace proactively. Swivels are inexpensive (£15-60) compared to injury risk or bag damage from failure.
Can I mount a speed ball platform myself?
Yes, if you're handy with tools and have solid brick or concrete walls. Use all five fixing points, drill appropriate depth (75-100mm), use hex head bolts, verify level installation. Adjustable platforms more complex than fixed—follow instructions carefully. Professional installation recommended for commercial facilities or if uncertain about wall structure.
Will my punch bag damage the wall?
Properly installed brackets on solid brick or concrete walls won't damage wall structure. However, bags may contact wall during swinging if bracket reach is insufficient. Wall contact can damage bag exterior and scuff walls. Use longer brackets (24-30") to prevent contact, or install protective padding on wall if contact unavoidable.
Can I use the same bracket for different weight bags?
Yes, as long as all bags are within bracket's load capacity. Swapping bags requires removing chains and reattaching—takes 5-10 minutes. Useful for varying training (light bag for speed, heavy bag for power). Ensure bracket rated for heaviest bag you'll use. Folding brackets particularly versatile for multi-bag setups.
Do I need professional installation?
Recommended for: commercial facilities, heavy bags (40kg+), uncertain wall structures, retractable brackets, ceiling mounting. DIY possible for: handy individuals, light bags (under 30kg), confirmed solid brick walls, standard folding brackets. When in doubt, hire professional—improper installation risks injury and property damage.
